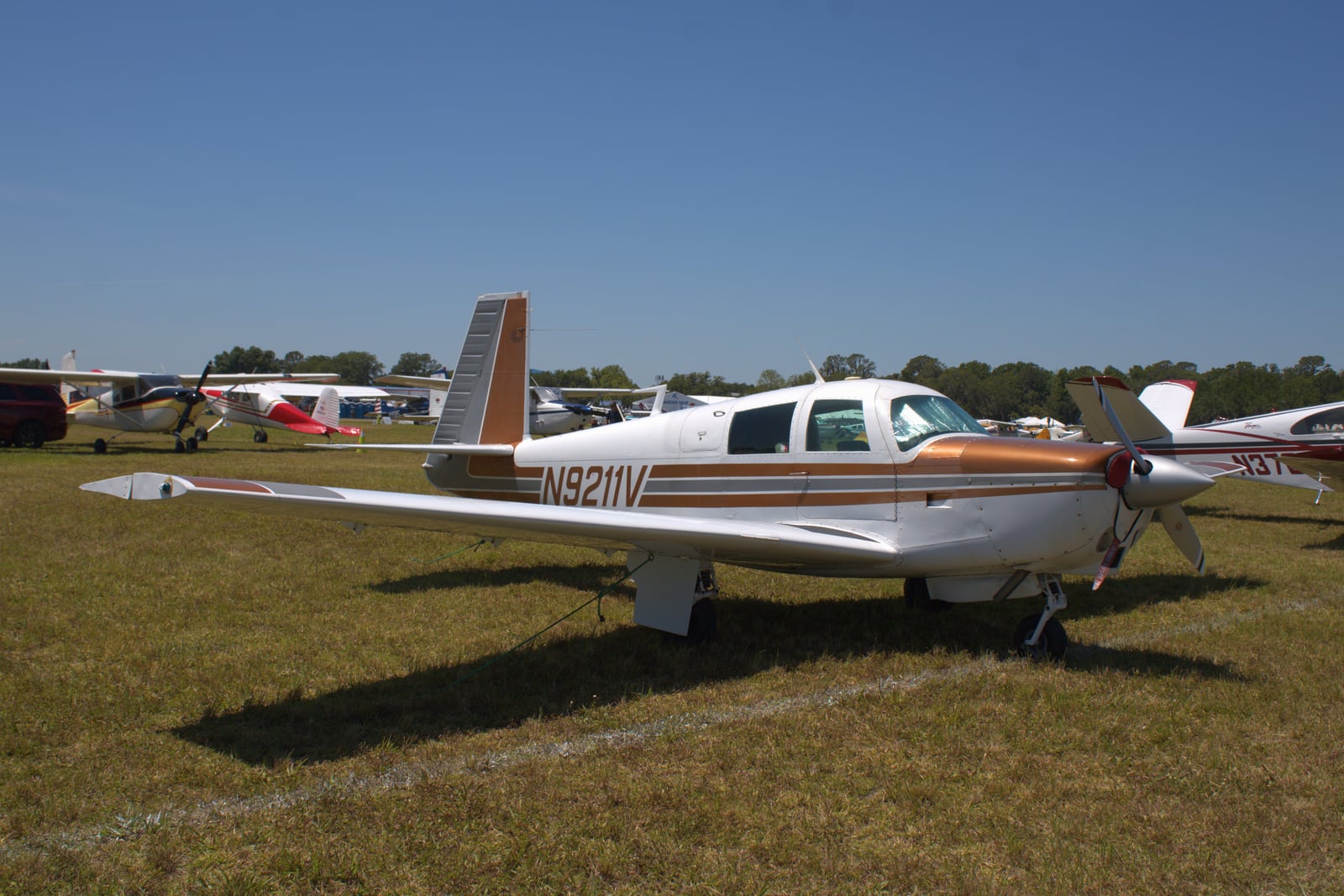

Mooney M20C Ranger

Mooney introduced the M20C Ranger in 1962 as the volume entry-level Mooney. The Ranger followed earlier M20 variants (the original wooden-wing M20, the M20A, and the M20B) and standardized the all-metal airframe that all later Mooney M20-series airplanes would use. The original M20C had a carbureted Lycoming O-360-A1D at 180 hp with retractable landing gear and the Mooney's signature aerodynamic refinements (tight cowling, low-drag retract gear, characteristic empennage).

Production ran from 1962 to 1978 with steady refinements but no major engineering changes. Mooney offered the M20C alongside the M20E (fuel-injected, 200 hp introduced 1964) and the M20F Executive (stretched fuselage M20E introduced 1966). The M20C remained the carbureted entry-level Mooney throughout. Total M20C production was about 2,000 aircraft, making it one of the most-built Mooney variants.

Mooney ended M20C production in 1978 along with similar entry-level variants as the company consolidated around the higher-power M20J 201 and M20K 231 (introduced 1976 and 1979 respectively). The fleet has remained popular with buyers who want a Mooney's cross-country performance and aerodynamic efficiency at lower acquisition cost than the J/K-series. Mooneyspace.com is the volume online community resource, providing decades of accumulated M20C-specific knowledge.

The M20C Ranger cruises at about 145 KTAS at 75% power, burning 9.5 gph of 100LL. At long-range cruise (65%), the airplane drops to about 135 KTAS on 8 gph. The Mooney aerodynamic refinements deliver meaningful efficiency. The M20C is roughly 15 to 20 knots faster than a Piper Arrow II at similar fuel burn, and the airplane achieves comparable performance to a Cessna 182 at lower fuel burn.

Useful load on an M20C is about 900 to 950 pounds. Full fuel (52 gallons usable) leaves about 600 to 650 pounds for people and bags. Two adults plus full bags or four adults plus minimal bags fit within gross. The Mooney cabin is meaningfully smaller than a Cherokee or Cessna of similar performance class. The airplane is built for cross-country efficiency rather than four-passenger comfort. Range with reserves is about 700 nm at long-range cruise. Service ceiling is 18,800 ft on paper.

The Lycoming O-360-A1D is the engine on every M20C Ranger. It's a four-cylinder, horizontally opposed, direct-drive, carbureted piston rated at 180 hp at 2,700 RPM. Lycoming's published TBO is 2,000 hours per Lycoming Service Instruction 1009 BE. The O-360-A1D is the same engine as the carbureted PA-28-180 Cherokee, with universal Lycoming parts and shop support.

Field overhauls at Penn Yan, Gann Aviation, or other reputable Lycoming shops run $30,000 to $42,000 in 2026 prices. The O-360 is among the cheapest four-cylinder Lycomings to overhaul. The simple carbureted ignition and fuel system are well-understood by every shop that works on Lycoming engines.

Oil consumption on a healthy O-360-A1D runs about 0.15 to 0.25 quarts per hour. The engine reaches TBO routinely when operated regularly. Mooney M20Cs commonly run their engines well past published TBO on-condition under Part 91 non-commercial operation. The constant-speed propeller (Hartzell two-blade or McCauley two-blade) requires overhaul concurrent with engine. Prop overhauls run $2,500 to $4,000.

Plan on $165 to $230 per flight hour at 100 hours a year of utilization, all-in. The M20C's operating cost is meaningfully lower than higher-power Mooneys due to the smaller O-360 engine. Fuel and oil run about $52 to $67 per hour at 9.5 gph and $5.50 to $7 for 100LL. Engine overhaul reserve is $15 to $21 per hour based on a $30,000 to $42,000 overhaul amortized across the 2,000-hour TBO. Prop overhaul reserve adds $1.25 to $2.00 per hour. Airframe maintenance reserve is $25 to $40 per hour due to retractable gear and Mooney-specific items (fuel tank reseal cycles, gear system).

Annual fixed costs (hangar, insurance, annual inspection) add another $55 to $100 per hour at 100 hours a year of utilization. Insurance on the M20C is moderate. Hull values are reasonable. First-time retract owners pay $3,000 to $5,500 a year typically. Established Mooney pilots with 200+ hours in type pay $1,800 to $3,500.

Acquisition cost in mid-2026: An M20C with mid-time engine and steam-gauge panel runs $55,000 to $85,000. An M20C with fresh engine, fresh fuel-tank reseal, and modern Garmin panel runs $85,000 to $115,000. The fuel tank reseal status is a major pricing variable. Many M20Cs have had at least one tank reseal over their decades of service.

Mooneyspace.com is the volume online community for M20C owners. Free membership. The forum has accumulated 50+ years of Mooney-specific knowledge including pre-buy guidance, fuel tank reseal economics, gear system maintenance, and the airplane's specific operating characteristics. Most M20C ownership decisions benefit from Mooneyspace consultation.
